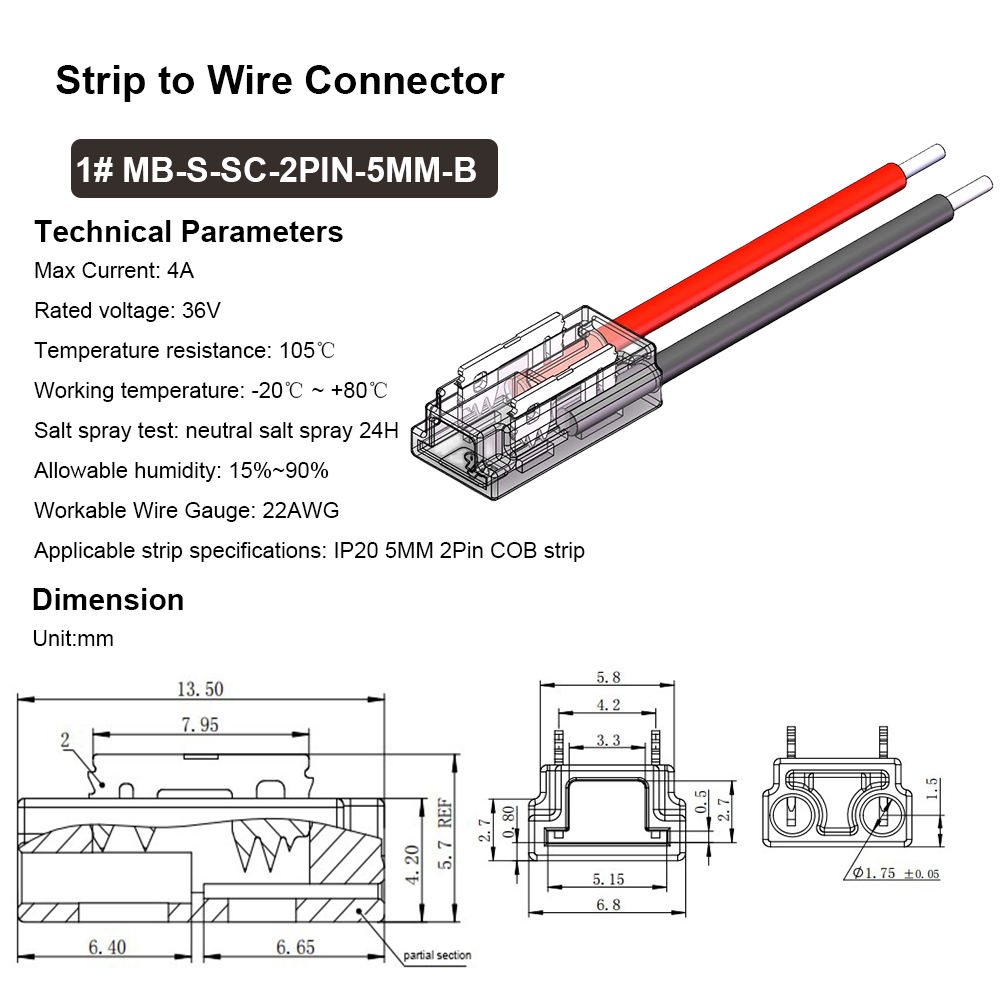

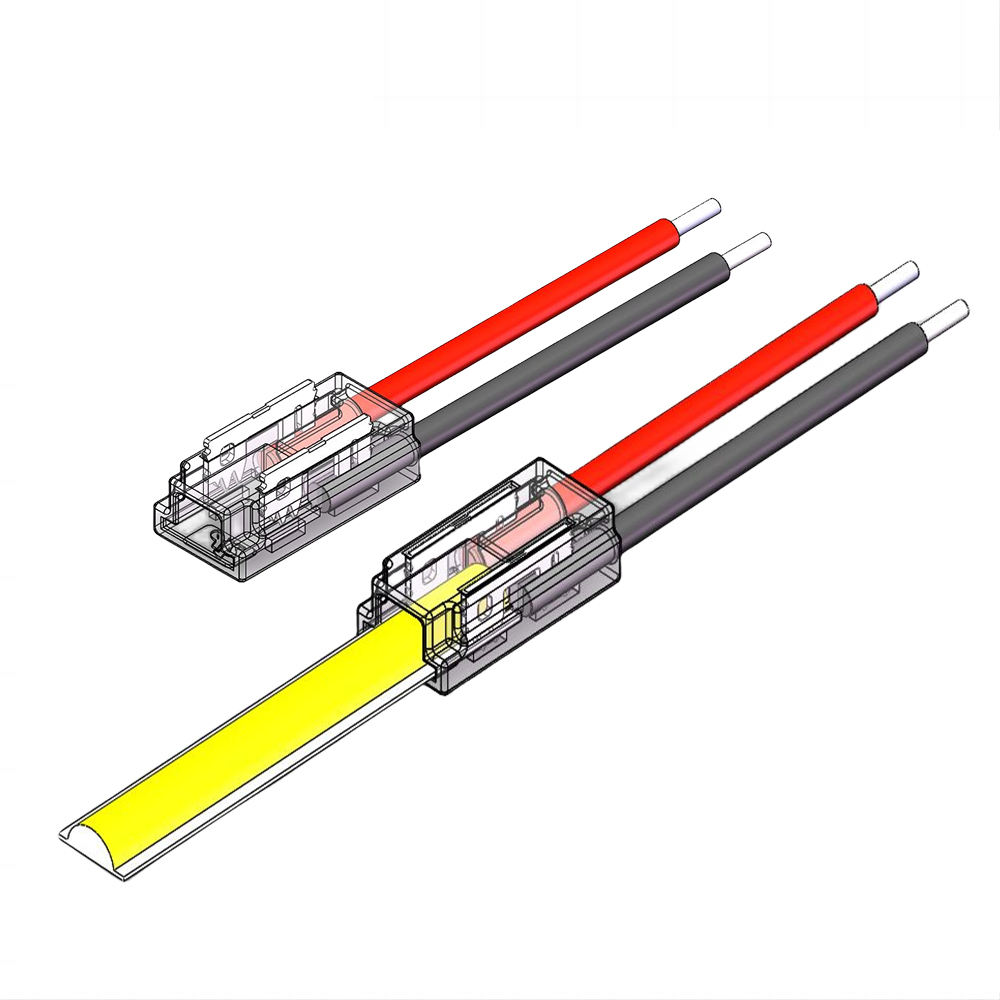

IP20 COB SMD 5mm 2pin Led Strip Connector
Product Details:
5mm 2pin Led Strip Connector
Connector Type : Strip to Wire
IP Rating: IP20
Connector: 5mm
Length: Customized
Pins: 2Pin
Wire: UL Wire
Product Name | IP20 COB SMD strips 5mm width PCB 2PIN single color LED Solderless Connectors 2pin | |||
Logo/New Moulds | Available, according to customer’s demands | |||
Packaging | Normal Bag, Carton and Customized packaging acceptable | |||
Rated Current | 4A | |||
Max Rated voltage | 5V/9V/12V/18V/24V/36V | |||
Withstand voltage | 500V | |||
Temperature resistance | 105℃ | |||
Working temperature | -20℃ ~ +80℃ | |||
Salt spray test | neutral salt spray 24H | |||
Allowable humidity | 15%~90% | |||
Applicable strip specifications | IP20 SMD & COB strip | |||
